503548-1222 Original stock-wholesale price

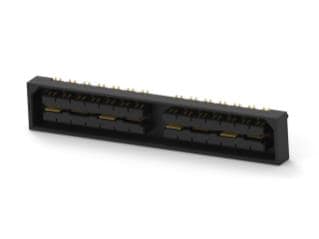

The image is for reference only



503548-1222

Manufacturer Model： 503548-1222
Manufacturer： Molex
Package/Specification

Product Description： Board to Board & Mezzanine Connectors SLIMSTACK .4MM PITCH HRF RECEPT 12CKT

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Board to Board & Mezzanine Connectors
Manufacturer:	Molex
Product Category:	Board to Board & Mezzanine Connectors
RoHS:	Details
Product:	Receptacles
Number of Positions:	12 Position
Pitch:	0.4 mm
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	0.7 mm
Current Rating:	300 mA
Voltage Rating:	50 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Contact Plating:	Gold
Contact Material:	Copper
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	503548
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Molex
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors

Technical Documentation
Data Book	503548-1222.pdf
