5120524-2 Original stock-wholesale price

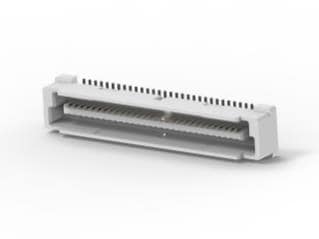

The image is for reference only



5120524-2

Manufacturer Model： 5120524-2
Manufacturer： TE Connectivity / AMP
Package/Specification

Product Description： Board to Board & Mezzanine Connectors 1FHR,84,30A/S,S,N,S14,15

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Board to Board & Mezzanine Connectors
Manufacturer:	TE Connectivity
Product Category:	Board to Board & Mezzanine Connectors
RoHS:	Details
Product:	Receptacles
Number of Positions:	84 Position
Pitch:	1 mm
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	15 mm
Current Rating:	800 mA
Voltage Rating:	250 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 110 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Thermoplastic (TP)
Series:	1 mm Free Height
Packaging:	Reel
Packaging:	Cut Tape
Brand:	TE Connectivity / AMP
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	300
Subcategory:	Board to Board & Mezzanine Connectors
Unit Weight:	0.052135 oz

Technical Documentation
Data Book	5120524-2.pdf
