346-080-520-201 Original stock-wholesale price

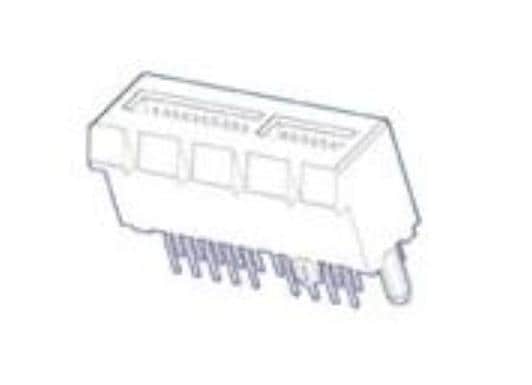

The image is for reference only



346-080-520-201

Manufacturer Model： 346-080-520-201
Manufacturer： EDAC
Package/Specification

Product Description： Standard Card Edge Connectors 80P .125" x .250" Green

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Card Edge Connectors
Manufacturer:	EDAC
Product Category:	Standard Card Edge Connectors
RoHS:	Details
Product:	Receptacles
Number of Positions:	80 Position
Pitch:	3.18 mm
Board Thickness:	1.57 mm
Mounting Style:	Through Hole
Mounting Angle:	Straight
Contact Plating:	Gold
Series:	346
Brand:	EDAC
Contact Material:	Copper Alloy
Current Rating:	3 A
Housing Material:	Thermoplastic Polyester
Insulation Resistance:	5000 MOhms
Maximum Operating Temperature:	+105 C
Minimum Operating Temperature:	- 40 C
Number of Rows:	2 Row
Product Type:	Standard Card Edge Connectors
Factory Pack Quantity:	25
Subcategory:	Card Edge Connectors
Termination Style:	PC Pin
Unit Weight:	1.085953 oz

Technical Documentation
Data Book	346-080-520-201.pdf
