IRSM505-025PATR Original stock-wholesale price

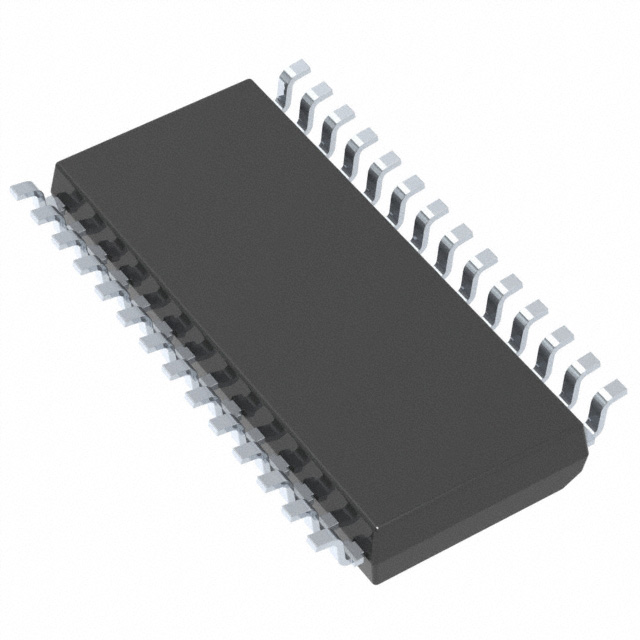

The image is for reference only



IRSM505-025PATR

Manufacturer Model： IRSM505-025PATR
Manufacturer： Infineon Technologies
Package/Specification

Product Description： IC MOTOR DRIVER 500V 23SOP

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x10.46500（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Full Half-Bridge Drivers
Mfr	Infineon Technologies
Series	µIPM™-DIP
Package	Tape & Reel (TR)
Product Status	Last Time Buy
Output Configuration	Half Bridge (3)
Applications	AC Motors
Interface	Logic
Load Type	Inductive
Technology	UMOS
Rds On (Typ)	3Ohm
Current - Peak Output	1.5A
Current - Peak Output	11A

Technical Documentation
Data Book	IRSM505-025PATR.pdf
