MS3456W36-9P Original stock-wholesale price

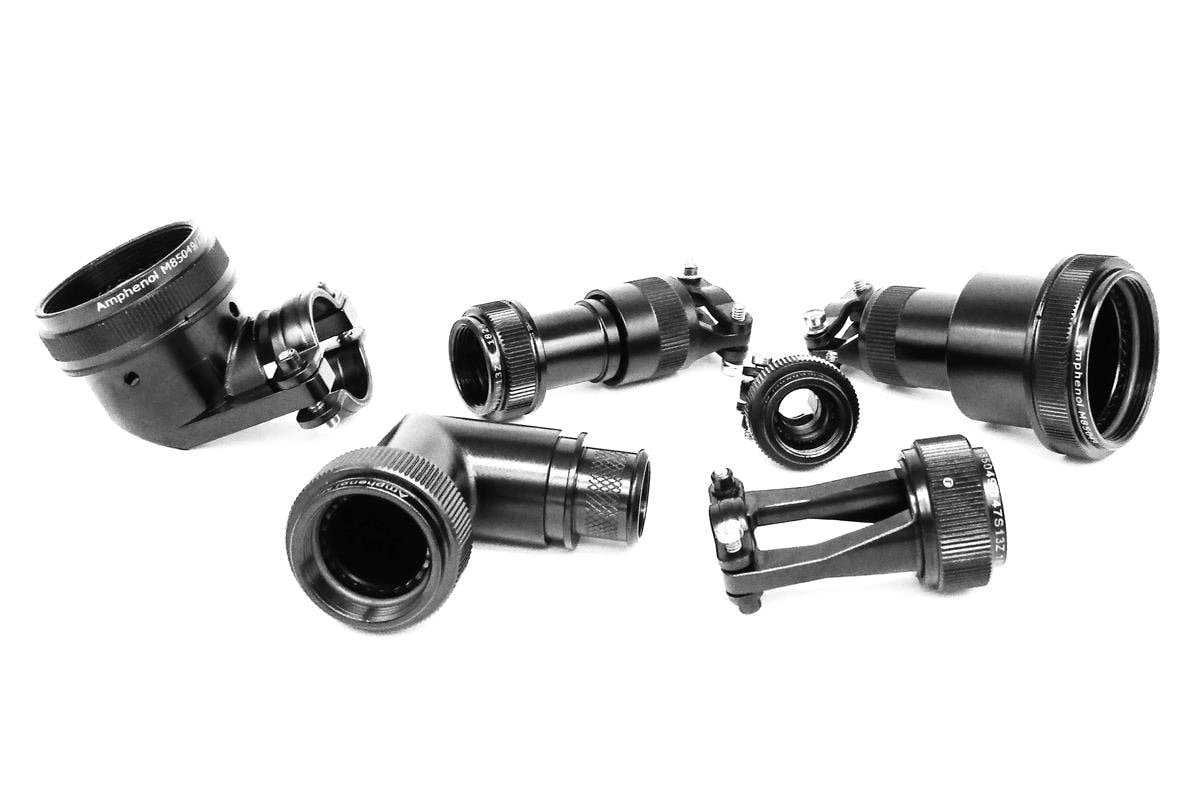

The image is for reference only



MS3456W36-9P

Manufacturer Model： MS3456W36-9P
Manufacturer： Amphenol Aerospace
Package/Specification

Product Description： Circular MIL Spec Connector PLUG

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	MIL-Spec / MIL-Type
Manufacturer:	Amphenol
Product Category:	Circular MIL Spec Connector
Number of Positions:	31 Position
Contact Gender:	Pin (Male)
Insert Arrangement:	36-09
Product:	Plugs
Shell Size:	36
Shell Style:	In-Line
MIL Type:	MIL-DTL-5015
Termination Style:	Crimp
Mounting Style:	Cable
Current Rating:	13 A, 23 A, 46 A, 80 A
Contact Plating:	Gold
Contact Material:	Copper Alloy
Series:	Matrix 5015
Brand:	Amphenol Aerospace
Mating Style:	Threaded
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Shell Material:	Aluminum
Shell Plating:	Olive Drab Cadmium
Factory Pack Quantity:	1
Subcategory:	Circular Connectors
Tradename:	5015
Part # Aliases:	3456W369P

Technical Documentation
Data Book	MS3456W36-9P.pdf
