HCPL-2503#020 Original stock-wholesale price

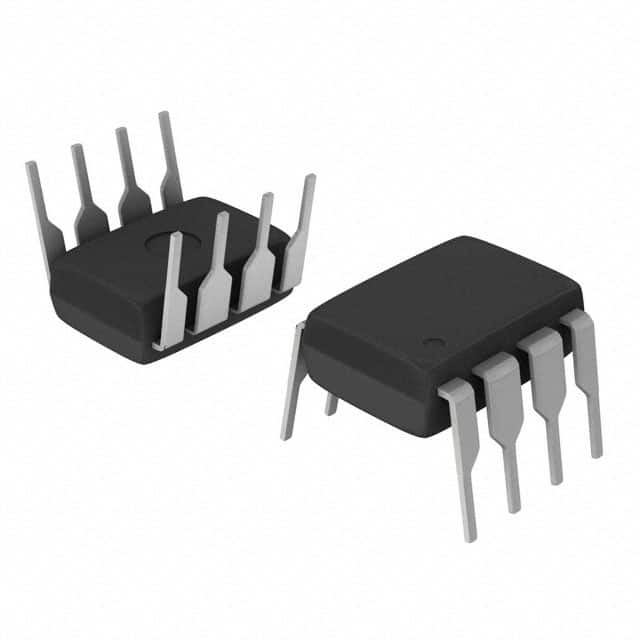

The image is for reference only



Broadcom Limited HCPL-2503#020

Manufacturer Model： HCPL-2503#020
Manufacturer： Broadcom Limited
Package/Specification

Product Description： OPTOISOLATOR 5KV TRANSISTOR 8DIP

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Optoisolators - Transistor, Photovoltaic Output
Mfr	Broadcom Limited
Series	-
Package	Tube
Product Status	Discontinued at Digi-Key
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	15% @ 8mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	1µs, 1.5µs
Rise / Fall Time (Typ)	-
Output Type	DC
Output Type	Transistor with Base

Technical Documentation
Data Book	HCPL-2503#020.pdf
