NSVBC143JPDXV6T5G Original stock-wholesale price

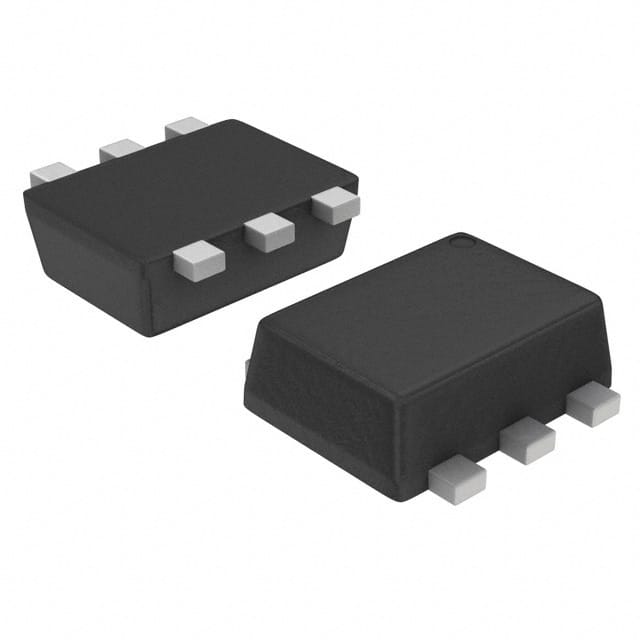

The image is for reference only



onsemi NSVBC143JPDXV6T5G

Manufacturer Model： NSVBC143JPDXV6T5G
Manufacturer： onsemi
Package/Specification

Product Description： SS SOT563 RSTR XSTR TR

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Mfr	onsemi
Series	Automotive, AEC-Q101
Package	Tape & Reel (TR)
Product Status	Active
Transistor Type	1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1)	2.2kOhms, 47kOhms
Resistor - Emitter Base (R2)	47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 5mA, 10V
Current - Collector Cutoff (Max)	250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)	500nA

Technical Documentation
Data Book	NSVBC143JPDXV6T5G.pdf
