APTGL700SK120D3G Original stock-wholesale price

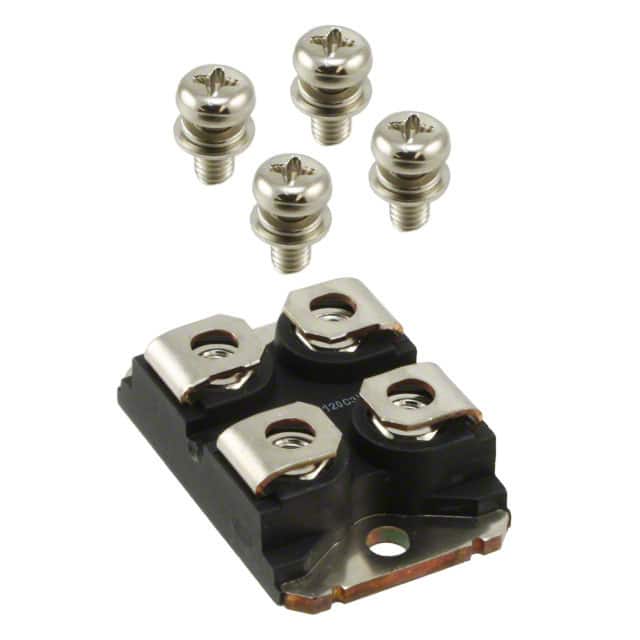

The image is for reference only



APTGL700SK120D3G

Manufacturer Model： APTGL700SK120D3G
Manufacturer： Microchip Technology
Package/Specification

Product Description： IGBT MODULE 1200V 840A 3000W D3

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x315.70250（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Transistors - IGBTs - Modules
Mfr	Microchip Technology
Series	-
Package	Bulk
Product Status	Active
IGBT Type	Trench Field Stop
Configuration	Single
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	840 A
Power - Max	3000 W
Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 600A
Input Capacitance (Cies) @ Vce	5 mA
Input Capacitance (Cies) @ Vce	37.2 nF @ 25 V

Technical Documentation
Data Book	APTGL700SK120D3G.pdf
