NGTD20T120F2SWK Original stock-wholesale price

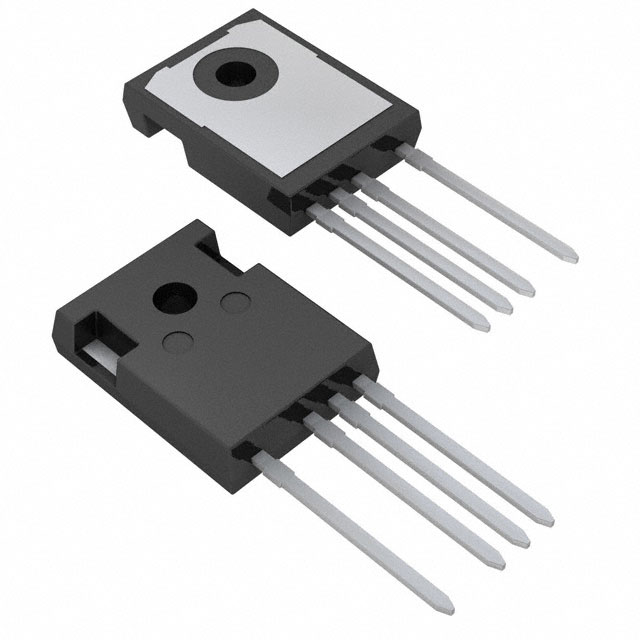

The image is for reference only



onsemi NGTD20T120F2SWK

Manufacturer Model： NGTD20T120F2SWK
Manufacturer： onsemi
Package/Specification

Product Description： IGBT TRENCH FIELD STOP 1200V DIE

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Transistors - IGBTs - Single
Mfr	onsemi
Series	-
Package	Tray
Product Status	Obsolete
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector Pulsed (Icm)	100 A
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 20A
Switching Energy	-
Input Type	Standard
Test Condition	-
Test Condition	-

Technical Documentation
Data Book	NGTD20T120F2SWK.pdf
